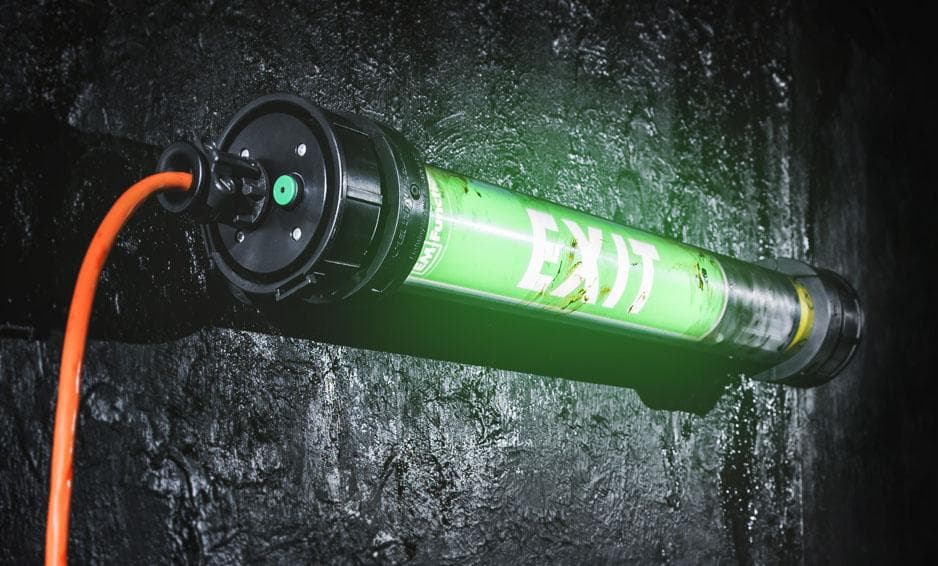

Hazardous Area Emergency Lighting

Emergency lighting in Zone 1 and Zone 2 hazardous areas must hold IECEx and/or ATEX certification under the IEC 60079 series, in addition to meeting the relevant emergency lighting performance standard (IEC 60598-2-22 for maintained and non-maintained emergency luminaires). In the GCC, ADNOC and Saudi Aramco engineering standards specify both the explosion protection certification and the emergency lighting performance requirements. AJV Tech supplies certified emergency lighting meeting both requirements.

GCC oil and gas operator standards and IEC 60598-2-22 typically require a minimum 3-hour battery backup duration for emergency escape route lighting and emergency exit lighting in hazardous areas. Some safety-critical installations require longer durations. AJV Tech supplies explosion proof emergency luminaires with 3-hour battery backup as standard, with extended duration options available on request.

Yes. Modern explosion proof emergency luminaires include automatic self-test functions that periodically test the battery and lamp circuit and report faults. This eliminates the need for manual testing in hazardous areas, which is a significant operational benefit for refinery and offshore platform operators. AJV Tech can advise on self-testing models suitable for GCC projects.

IEC 60598-2-22 and ADNOC engineering standards require a minimum of 1 lux at floor level along escape route centrelines in emergency mode, with some operator standards requiring higher levels for industrial escape routes. Emergency exit signs must achieve sufficient luminance to be visible from the required viewing distance. AJV Tech can provide a lighting design calculation for emergency escape routes as part of technical support.

Yes. AJV Tech supplies IECEx and ATEX certified explosion proof emergency luminaires with documentation packages accepted on ADNOC and Saudi Aramco projects. Documentation includes IECEx and ATEX certificates, EU declarations of conformity, product datasheets, and installation manuals. We support engineering submittals and material inspection request processes for both operators.
