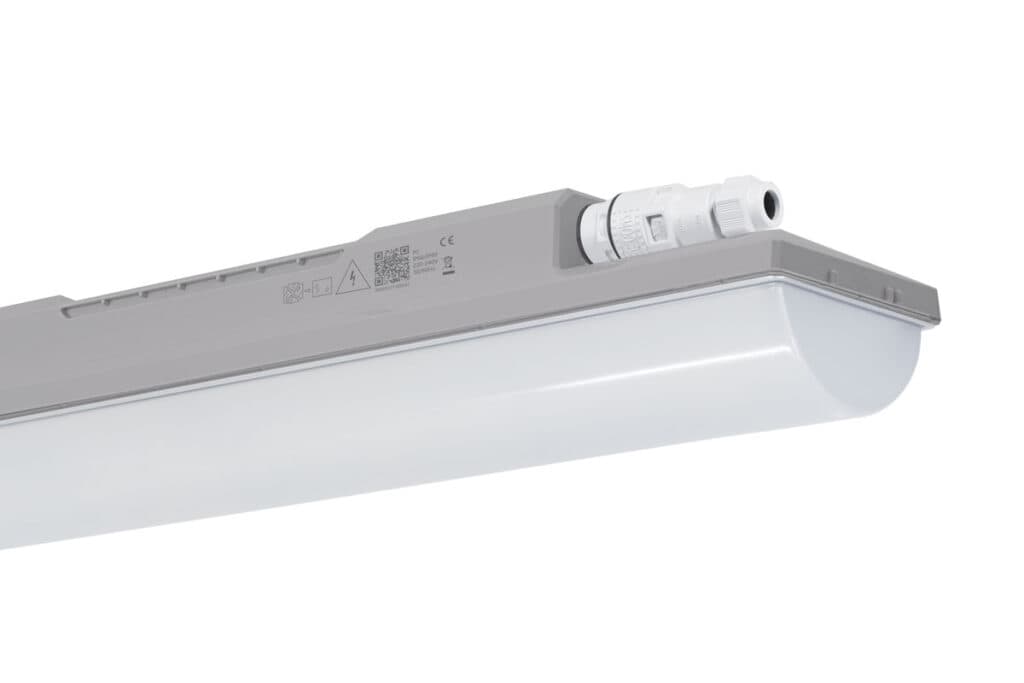

CONCEPT TUNNEL is TREVOS&#8217;s hermetically sealed luminaire range for road tunnels and
 transportation infrastructure, built on the INNOVA platform. AJV Technical Equipment supplies CONCEPT
 TUNNEL across the UAE, Saudi Arabia, Qatar, Oman, Bahrain and Kuwait.
The luminaire is sealed without traditional clips to prevent water ingress, and an integrated
 ventilation membrane eliminates negative pressure and condensate vapour, making it suited to
 intermittent operation in high-humidity, carbon-monoxide and soot-exposed tunnel environments.
CONCEPT TUNNEL is available in four standard configurations: 1.4 ft at 6,500 lm (38.5 W, 45&#176;C
 max ambient), 1.4 ft at 8,980 lm (52.8 W, 40&#176;C max ambient), 1.5 ft at 8,020 lm (47.4 W, 45&#176;C
 max ambient), and 1.5 ft at 11,260 lm (64.7 W, 40&#176;C max ambient) &#8212; the two higher-output SKUs
 carry a lower maximum ambient rating than the two standard-output SKUs. DALI-dimmable variants are
 available for all four configurations.
The luminaire is built with a dark grey ABS body (RAL 7001) and translucent ABS diffuser for high
 chemical resistance and UV stability, at 4000K colour temperature and CRI 80. It carries CE marking,
 IP66/IP69 ingress protection, IK10 impact resistance, Class II (double-insulated) electrical safety at
 230V 50&#8211;60Hz, SDCM3 chromaticity tolerance, and a rated lifespan of 150,000 hours (L95 @25&#176;C)
 across an ambient range of -25&#176;C to +45&#176;C (or +40&#176;C for the higher-output SKUs). This is
 a general industrial luminaire range for non-hazardous areas &#8212; it is not rated for use in
 explosive or classified atmospheres. AJV Technical Equipment supplies CONCEPT TUNNEL across the UAE and
 GCC for tunnel and transport infrastructure projects.
