<p>The new <strong>Raytec SPARTAN HPFL Zone 2 LED floodlight</strong> delivers powerful illumination for large spaces and structures in hazardous environments. Available in <strong>HPFL100, HPFL200 and HPFL300</strong> models, the range provides outputs up to <strong>38,640 lumens</strong>, with twelve beam options to suit different mounting heights and lighting requirements.</p>
<p>Suitable applications include offshore rigs, FPSOs, refineries, tank farms, petrochemical facilities and industrial loading areas. AJV supplies the range across the UAE, Saudi Arabia, Qatar, Oman, Bahrain, Kuwait and India, with technical guidance and detailed lighting design support.</p>
<h3>ATEX and IECEx Certification</h3>
<p>The standard SPARTAN HPFL SPZ models are certified for <strong>Zone 2 gas and Zone 22 dust environments</strong>, with <strong>IIC gas-group protection</strong>. A separate variant is available for applications requiring Zone 21 dust certification.</p>
<div>
<div>
<div>
<table>
<thead>
<tr>
<th>Certification detail</th>
<th>Standard Zone 2/22 model</th>
</tr>
</thead>
<tbody>
<tr>
<td>ATEX certificate</td>
<td>CML 25ATEX3450</td>
</tr>
<tr>
<td>IECEx certificate</td>
<td>IECEx CML 25.0115</td>
</tr>
<tr>
<td>Equipment category</td>
<td>II 3 GD</td>
</tr>
<tr>
<td>Gas protection marking</td>
<td>Ex ec mc IIC T4 Gc</td>
</tr>
<tr>
<td>Dust protection marking</td>
<td>Ex tc IIIC T99°C Dc</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<div>
<div>
<div>
<table>
<thead>
<tr>
<th>Certification detail</th>
<th>Optional Zone 21 dust variant</th>
</tr>
</thead>
<tbody>
<tr>
<td>ATEX certificate</td>
<td>CML 25ATEX3451</td>
</tr>
<tr>
<td>IECEx certificate</td>
<td>IECEx CML 25.0116</td>
</tr>
<tr>
<td>Dust protection marking</td>
<td>Ex tb IIIC T99°C Db</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<p><strong>Zone 21 dust certification requires the appropriate variant; it does not apply to the standard Zone 2/22 model.</strong></p>
<h3>Built for Offshore and Industrial Environments</h3>
<p>The marine-grade aluminium enclosure features Raytec’s <strong>CX Shield protective coating</strong>, with corrosion classification CX according to ISO 12944-9:2018. Marine-grade stainless steel brackets and external fasteners provide additional durability in corrosive environments.</p>
<p>All three models feature <strong>IP66/IP67 ingress protection</strong>, <strong>IK09 impact resistance</strong> and a weight of <strong>18.5 kg</strong>. Modular construction and front-access wiring terminals simplify installation and allow key components to be replaced independently.</p>
<h3>Model Comparison</h3>
<div>
<div>
<div>
<table>
<thead>
<tr>
<th>Specification</th>
<th>HPFL100</th>
<th>HPFL200</th>
<th>HPFL300</th>
</tr>
</thead>
<tbody>
<tr>
<td>Power consumption</td>
<td>167 W</td>
<td>200 W</td>
<td>240 W</td>
</tr>
<tr>
<td>Maximum lumen output — 60° × 60° optics</td>
<td>28,056 lm</td>
<td>33,200 lm</td>
<td>38,640 lm</td>
</tr>
<tr>
<td>Ambient temperature range</td>
<td>−40°C to +70°C</td>
<td>−40°C to +65°C</td>
<td>−40°C to +60°C</td>
</tr>
<tr>
<td>DALI 2.0 control</td>
<td>Optional</td>
<td>Optional</td>
<td>Not available</td>
</tr>
<tr>
<td>Input voltage</td>
<td>110–277 V AC, 50/60 Hz</td>
<td>110–277 V AC, 50/60 Hz</td>
<td>110–277 V AC, 50/60 Hz</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<h3>Light Output by Beam Option</h3>
<p>Twelve symmetrical and asymmetrical optic options allow illumination to be directed towards the required working area. Select the model and optics together, as lumen output varies with the beam pattern.</p>
<div>
<div>
<div>
<table>
<thead>
<tr>
<th>Beam option</th>
<th>HPFL100</th>
<th>HPFL200</th>
<th>HPFL300</th>
</tr>
</thead>
<tbody>
<tr>
<td>30° × 30°</td>
<td>25,628 lm</td>
<td>30,327 lm</td>
<td>35,296 lm</td>
</tr>
<tr>
<td>60° × 60°</td>
<td>28,056 lm</td>
<td>33,200 lm</td>
<td>38,640 lm</td>
</tr>
<tr>
<td>90° × 90°</td>
<td>27,704 lm</td>
<td>32,783 lm</td>
<td>38,155 lm</td>
</tr>
<tr>
<td>120° × 120°</td>
<td>24,180 lm</td>
<td>28,613 lm</td>
<td>33,302 lm</td>
</tr>
<tr>
<td>140° × 140°</td>
<td>24,620 lm</td>
<td>29,134 lm</td>
<td>33,908 lm</td>
</tr>
<tr>
<td>80° × 30°</td>
<td>26,941 lm</td>
<td>31,880 lm</td>
<td>37,104 lm</td>
</tr>
<tr>
<td>120° × 50°</td>
<td>24,180 lm</td>
<td>28,613 lm</td>
<td>33,302 lm</td>
</tr>
<tr>
<td>AR1</td>
<td>23,944 lm</td>
<td>28,334 lm</td>
<td>32,977 lm</td>
</tr>
<tr>
<td>PP1</td>
<td>25,644 lm</td>
<td>30,346 lm</td>
<td>35,319 lm</td>
</tr>
<tr>
<td>PP2</td>
<td>24,792 lm</td>
<td>29,337 lm</td>
<td>34,144 lm</td>
</tr>
<tr>
<td>PP3</td>
<td>24,768 lm</td>
<td>29,309 lm</td>
<td>34,111 lm</td>
</tr>
<tr>
<td>WB</td>
<td>25,475 lm</td>
<td>30,145 lm</td>
<td>35,085 lm</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<p><em>These are mains-operation outputs from the standard datasheet. Confirm performance for alternative colour temperatures and bespoke configurations.</em></p>
<h3>Configuration Options and Project Support</h3>
<p>The range uses Platinum Elite SMT LEDs with <strong>CRI 80+</strong> and a standard colour temperature of <strong>6,500 K</strong>. Options include 4,000 K colour temperature, DALI 2.0 on HPFL100 and HPFL200, alternative cable entries, remote mounting and wildlife-friendly configurations.</p>
<p>Raytec provides a <strong>five-year manufacturer’s warranty</strong>, subject to its warranty terms.</p>
<p><strong>Contact AJV for a quotation, certification documents and lighting design assistance to select the correct SPARTAN HPFL Zone 2 floodlight for your project.</strong></p>

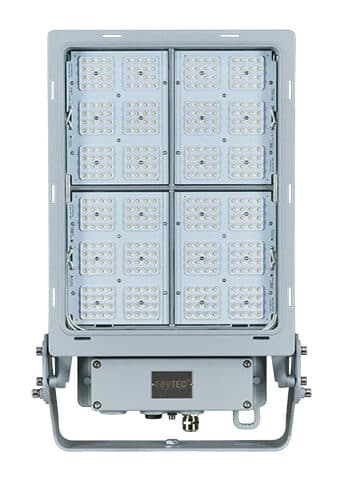

HPFL-Zone-2-Front

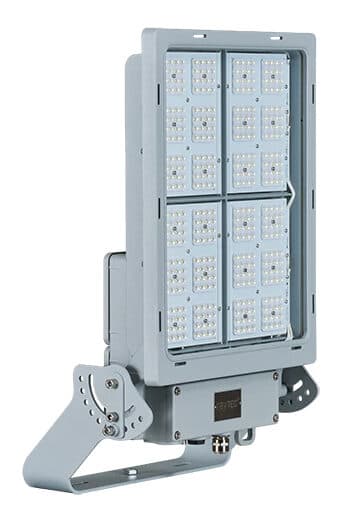

HPFL-Zone-2-Front-angle

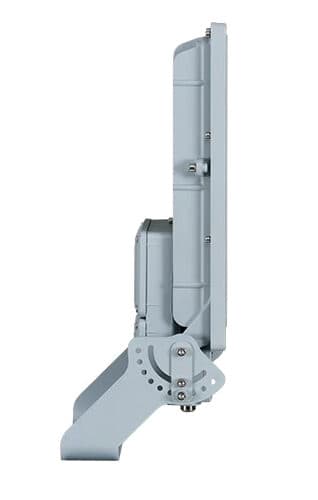

HPFL-Side-2

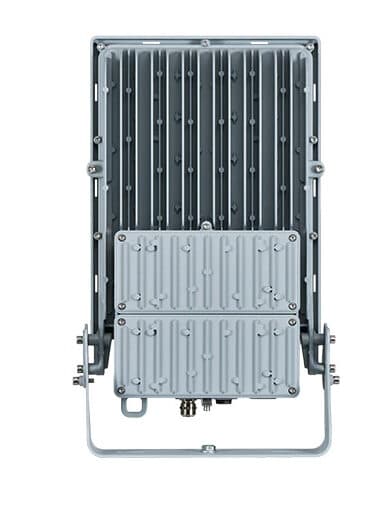

HPFL-Back

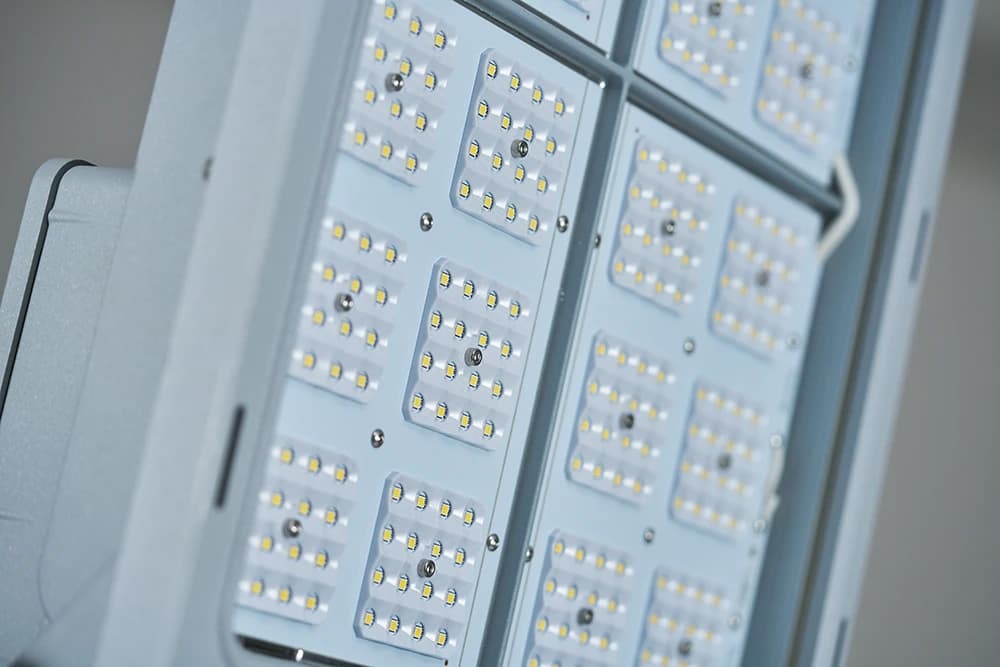

HPFL-Zone-2-Closeup

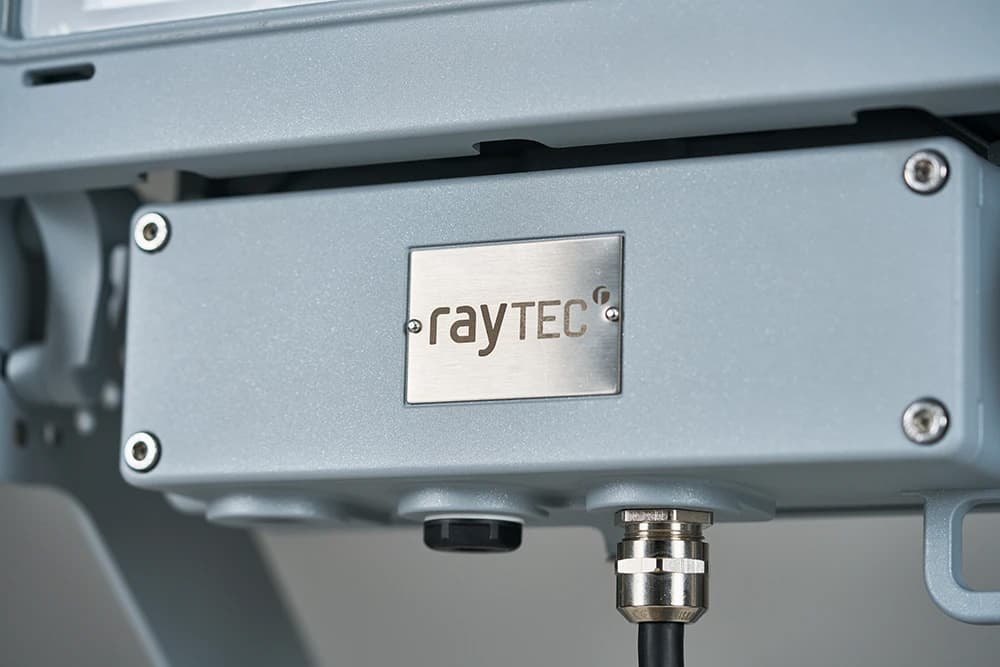

HPFL-Closeup-Raytec
