<p>The new Raytec SPARTAN HPFL is an ATEX and IECEx-certified LED floodlight for Zone 1/21 hazardous areas. Available in HPFL100, HPFL200 and HPFL300 models, it delivers up to <strong>34,560 lumens</strong>, with ten beam options for precise illumination. Its marine-grade aluminium construction, CX corrosion protection and IP66/IP67 rating make it suitable for demanding offshore and industrial environments.</p>
<h3>Product description</h3>
<p><strong>High-performance lighting for hazardous areas</strong></p>
<p>The Raytec SPARTAN HPFL Zone 1 LED floodlight provides powerful illumination for large outdoor areas, elevated structures and industrial workspaces where explosive gases or combustible dust may be present. Typical applications include offshore rigs, FPSOs, refineries, tank farms, petrochemical facilities and loading areas.</p>

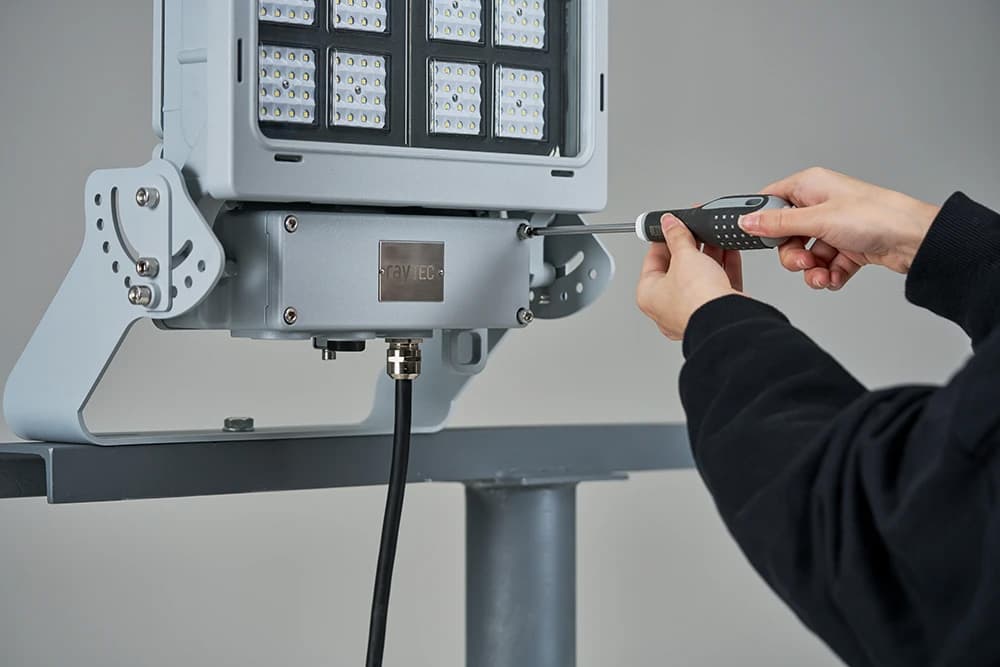

<p>The redesigned range features <strong>IIC gas-group certification</strong>, modular construction and front-access wiring terminals to simplify installation and maintenance. Independently replaceable components help reduce servicing time and support long-term operation.</p>
<p><strong>Built for offshore conditions and high ambient temperatures</strong></p>
<p>The enclosure combines marine-grade aluminium with Raytec’s <strong>CX Shield protective coating</strong>, rated to corrosion class CX under ISO 12944-9:2018. Marine-grade stainless steel brackets and external fasteners provide additional durability in corrosive environments.</p>
<p>All three models feature IP66/IP67 ingress protection and IK09 impact resistance. Maximum operating temperatures vary by model: <strong>+70°C for HPFL100, +65°C for HPFL200 and +60°C for HPFL300</strong>.</p>
<p><strong>Optics matched to your application</strong></p>
<p>Ten symmetrical and asymmetrical beam options allow light to be directed towards the required working area. AJV can assist with model selection, beam selection and detailed lighting design based on mounting height, required illumination and site conditions.</p>
<p>AJV supplies Raytec hazardous-area lighting for projects across the UAE, Saudi Arabia, Qatar, Oman, Bahrain, Kuwait and India.</p>
<h3>Model comparison</h3>
<div>
<div>
<div>
<table>
<thead>
<tr>
<th>Specification</th>
<th>HPFL100</th>
<th>HPFL200</th>
<th>HPFL300</th>
</tr>
</thead>
<tbody>
<tr>
<td>Power consumption</td>
<td>167 W</td>
<td>200 W</td>
<td>240 W</td>
</tr>
<tr>
<td>Maximum output — 60° × 60° optics</td>
<td>25,217 lm</td>
<td>29,800 lm</td>
<td>34,560 lm</td>
</tr>
<tr>
<td>Output — 90° × 90° optics</td>
<td>24,944 lm</td>
<td>29,478 lm</td>
<td>34,187 lm</td>
</tr>
<tr>
<td>Ambient temperature range</td>
<td>−40°C to +70°C</td>
<td>−40°C to +65°C</td>
<td>−40°C to +60°C</td>
</tr>
<tr>
<td>DALI 2.0</td>
<td>Optional</td>
<td>Optional</td>
<td>Not available</td>
</tr>
<tr>
<td>Supply voltage</td>
<td>110–277 V AC, 50/60 Hz</td>
<td>110–277 V AC, 50/60 Hz</td>
<td>110–277 V AC, 50/60 Hz</td>
</tr>
<tr>
<td>Weight</td>
<td>18.5 kg</td>
<td>18.5 kg</td>
<td>18.5 kg</td>
</tr>
<tr>
<td>Ingress protection</td>
<td>IP66/IP67</td>
<td>IP66/IP67</td>
<td>IP66/IP67</td>
</tr>
<tr>
<td>Impact resistance</td>
<td>IK09</td>
<td>IK09</td>
<td>IK09</td>
</tr>
<tr>
<td>Standard colour temperature</td>
<td>6,500 K</td>
<td>6,500 K</td>
<td>6,500 K</td>
</tr>
<tr>
<td>Colour rendering index</td>
<td>CRI 80+</td>
<td>CRI 80+</td>
<td>CRI 80+</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<p><strong>Model numbers are product identifiers; they do not indicate wattage.</strong> Lumen output depends on the selected optics.</p>
<h3>Light output by beam option</h3>
<div>
<div>
<div>
<table>
<thead>
<tr>
<th>Beam option</th>
<th>HPFL100</th>
<th>HPFL200</th>
<th>HPFL300</th>
</tr>
</thead>
<tbody>
<tr>
<td>60° × 60°</td>
<td>25,217 lm</td>
<td>29,800 lm</td>
<td>34,560 lm</td>
</tr>
<tr>
<td>90° × 90°</td>
<td>24,944 lm</td>
<td>29,478 lm</td>
<td>34,187 lm</td>
</tr>
<tr>
<td>120° × 120°</td>
<td>18,707 lm</td>
<td>22,107 lm</td>
<td>25,639 lm</td>
</tr>
<tr>
<td>140° × 140°</td>
<td>18,369 lm</td>
<td>21,708 lm</td>
<td>25,176 lm</td>
</tr>
<tr>
<td>120° × 50°</td>
<td>18,707 lm</td>
<td>22,107 lm</td>
<td>25,639 lm</td>
</tr>
<tr>
<td>AR1</td>
<td>18,532 lm</td>
<td>21,901 lm</td>
<td>25,400 lm</td>
</tr>
<tr>
<td>PP1</td>
<td>20,134 lm</td>
<td>23,793 lm</td>
<td>27,594 lm</td>
</tr>
<tr>
<td>PP2</td>
<td>18,975 lm</td>
<td>22,424 lm</td>
<td>26,007 lm</td>
</tr>
<tr>
<td>PP3</td>
<td>20,077 lm</td>
<td>23,726 lm</td>
<td>27,517 lm</td>
</tr>
<tr>
<td>WB</td>
<td>21,360 lm</td>
<td>25,241 lm</td>
<td>29,274 lm</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<p><em>Values are mains-operation outputs from Raytec’s current datasheet. Confirm output for alternative colour temperatures and bespoke configurations.</em></p>
<h3>Certification and additional specifications</h3>
<div>
<div>
<div>
<table>
<thead>
<tr>
<th>Feature</th>
<th>Specification</th>
</tr>
</thead>
<tbody>
<tr>
<td>Hazardous-area suitability</td>
<td>Zone 1/21</td>
</tr>
<tr>
<td>ATEX certificate</td>
<td>CML 25ATEX3449</td>
</tr>
<tr>
<td>IECEx certificate</td>
<td>IECEx CML 25.0115</td>
</tr>
<tr>
<td>Equipment category</td>
<td>II 2 GD</td>
</tr>
<tr>
<td>Gas protection marking</td>
<td>Ex eb mb IIC T4 Gb</td>
</tr>
<tr>
<td>Dust protection marking</td>
<td>Ex tb IIIC T99°C Db</td>
</tr>
<tr>
<td>Corrosion protection</td>
<td>CX, according to ISO 12944-9:2018</td>
</tr>
<tr>
<td>Cable entries</td>
<td>2 × M20 as standard; other options available</td>
</tr>
<tr>
<td>Terminal capacity</td>
<td>Looping connection for 4-core, 4 mm² cable</td>
</tr>
<tr>
<td>Power factor</td>
<td>&gt;0.95</td>
</tr>
<tr>
<td>Mounting</td>
<td>Stirrup bracket; universal burning position</td>
</tr>
<tr>
<td>Finish</td>
<td>Silver, RAL 9006</td>
</tr>
<tr>
<td>Manufacturer’s warranty</td>
<td>5 years, subject to Raytec’s warranty terms</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
<p>Options include <strong>4,000 K colour temperature, M25 entries, remote mounting and wildlife-friendly variants</strong>. Configuration availability should be confirmed when ordering.</p>
<p><strong>Contact AJV for a quotation, technical documentation and lighting design support for your project.</strong></p>
<p><a href="/contact">Request a quote</a> to discuss about your requirement.</p>

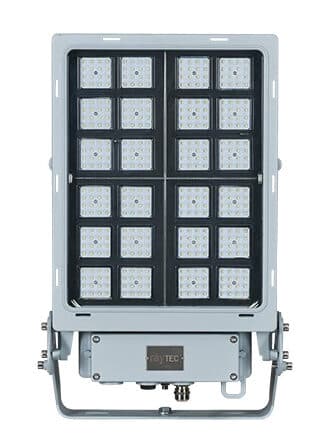

HPFL-Zone-1-Front-2

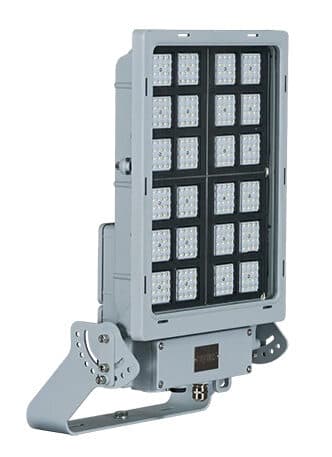

HPFL-Zone-1-Front-angle-2

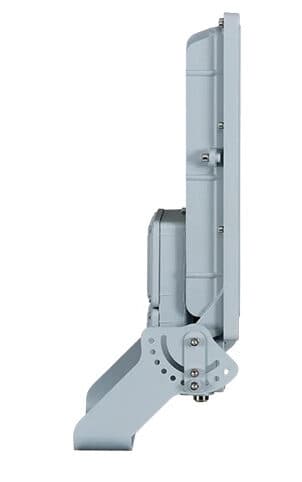

HPFL-Side

HPFL-Closeup-Front-Opening

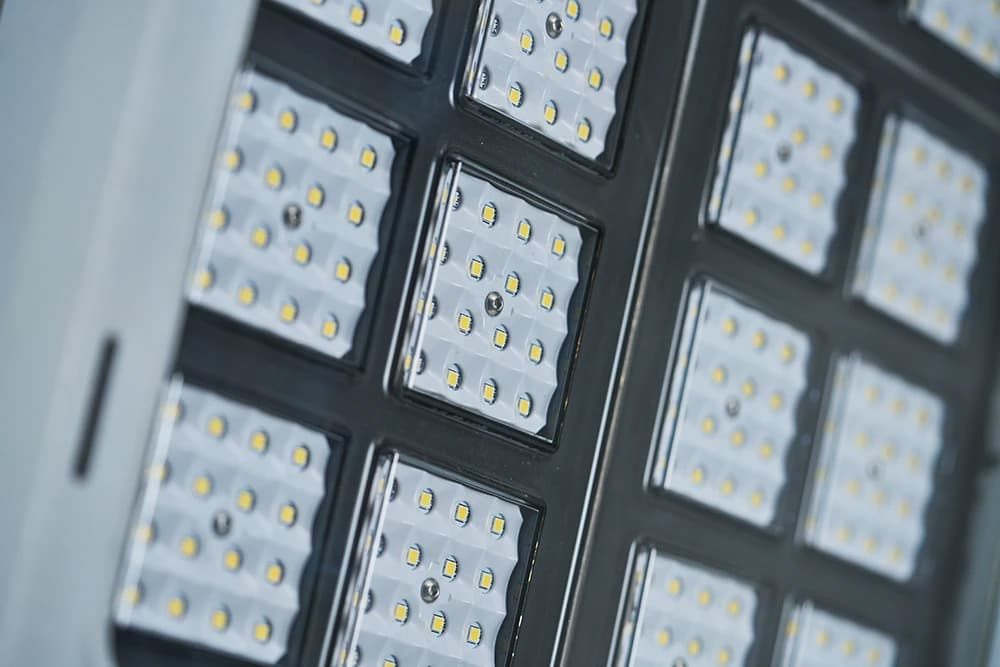

HPFL-Zone-1-Closeup
