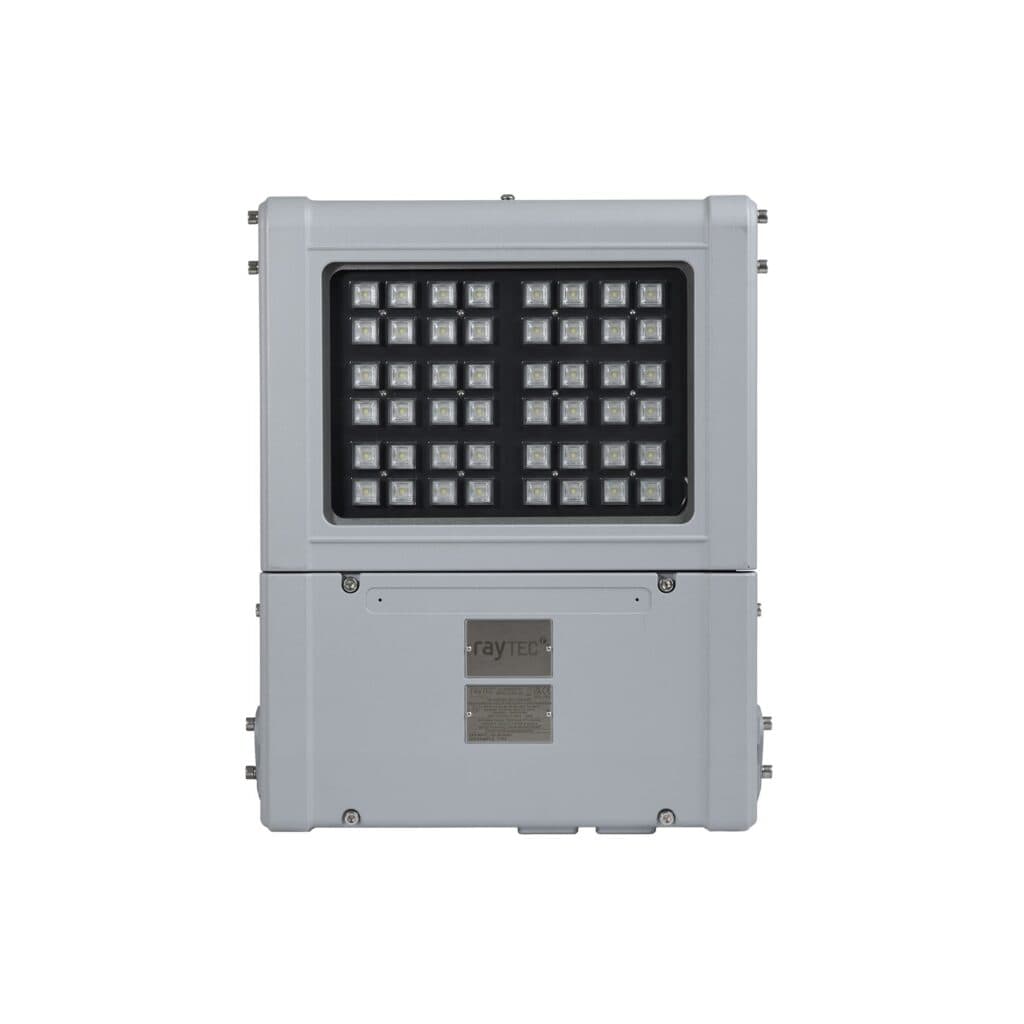

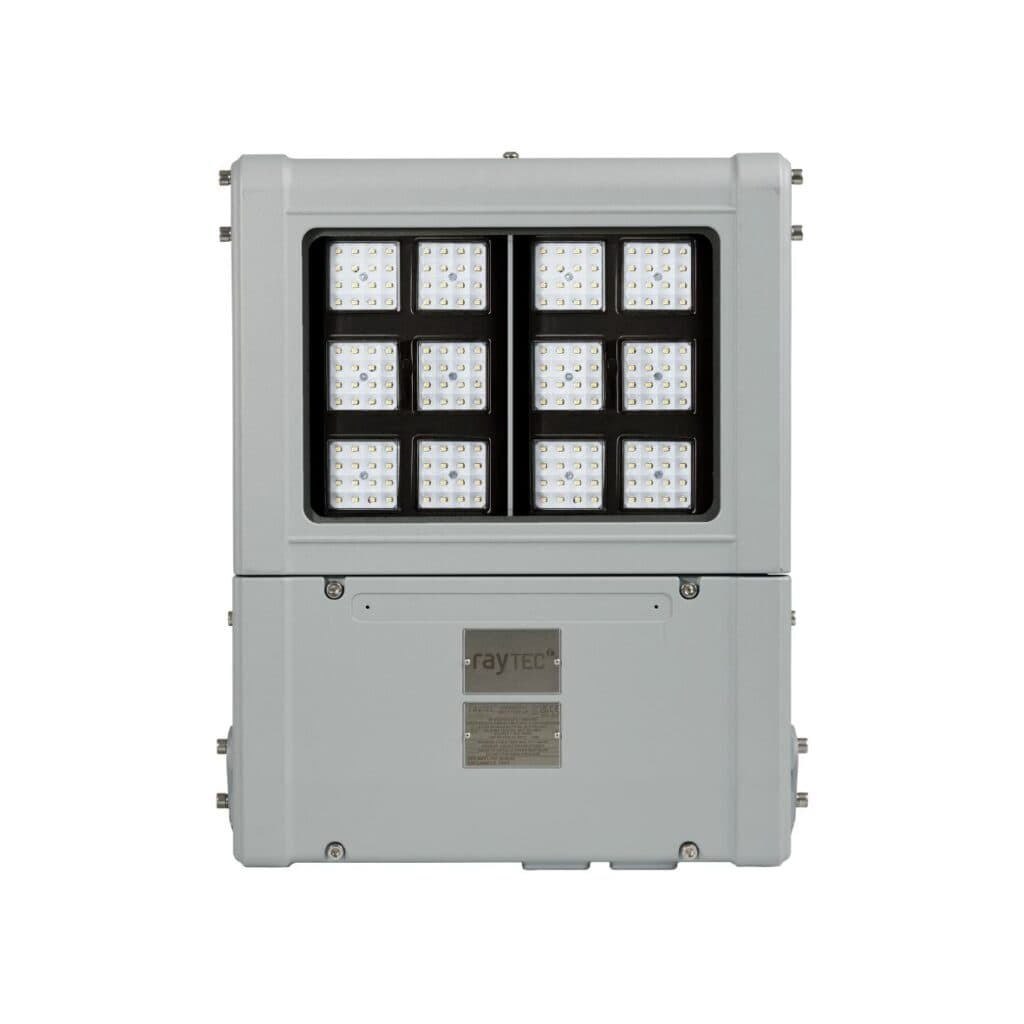

<p>The SPARTAN MPFL is a Zone 1 mid-power floodlight family (5K–20K) designed to directly replace<br />
discharge sources up to 250W SON, spanning 40W–120W and 5,223–20,000 lumens across five power<br />
tiers, with beam options of 30°×30°, 60°×60° or 90°×90°.</p>
<table>
<thead>
<tr>
<th>Family</th>
<th>Power Range</th>
<th>Max Lumens</th>
<th>SON<br />
Replacement</th>
<th>Weight</th>
<th>Best Fit</th>
</tr>
</thead>
<tbody>
<tr>
<td>FL48</td>
<td>136–139W</td>
<td>16,900 lm</td>
<td>Not stated as a SON<br />
rating</td>
<td>8–10kg</td>
<td>Beam-pattern flexibility, lighter fixture</td>
</tr>
<tr>
<td>MPFL</td>
<td>40–120W</td>
<td>15,547 lm</td>
<td>Up to 250W<br />
SON</td>
<td>13.2–16kg</td>
<td>Direct discharge-lamp retrofit, mid-range poles</td>
</tr>
<tr>
<td>HPFL</td>
<td>200–300W</td>
<td>29,134 lm</td>
<td>Up to 400W<br />
SON</td>
<td>23.5kg</td>
<td>Maximum output, DALI 2.0 dimming, large open areas</td>
</tr>
</tbody>
</table>
<h3>Worked Example</h3>
<p>A site replacing 250W SON floodlights pole-for-pole should size to the MPFL15K (120W, up to<br />
15,547 lm) — Raytec states this range is designed to directly replace SON sources up to that<br />
wattage. If the existing fixture is a 400W SON, the MPFL range is undersized and the HPFL range (up<br />
to 300W / 29,134 lm) is the correct family instead.</p>
<h3>Limitations</h3>

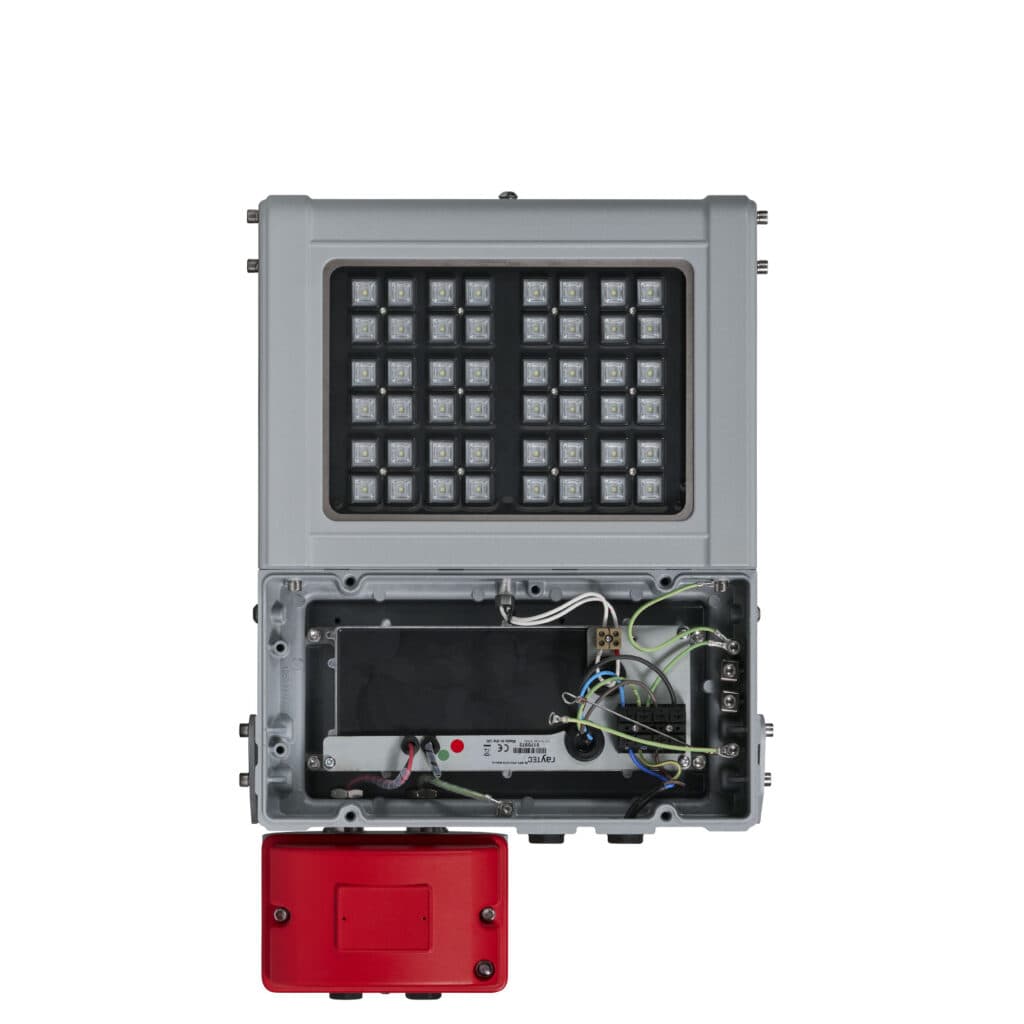

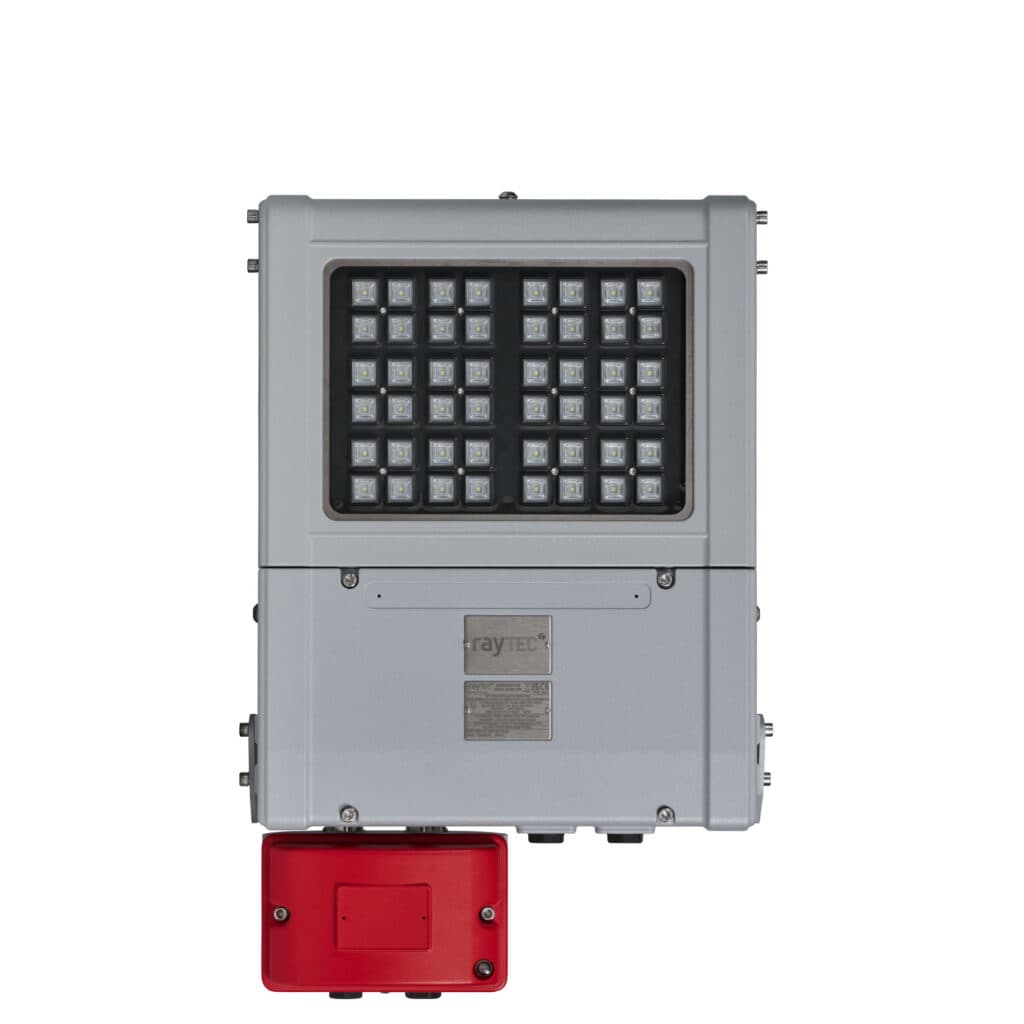

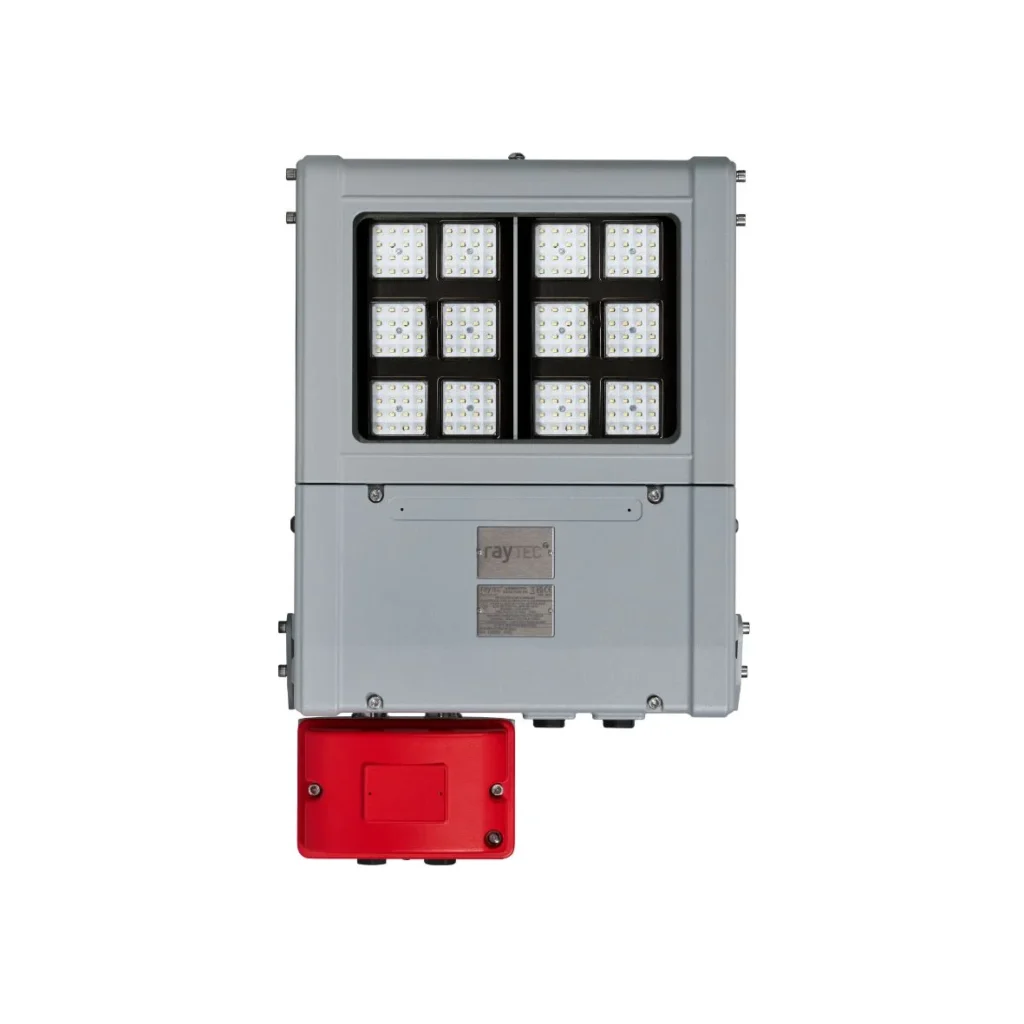

<p>MPFL emergency variants add 2.8kg (16kg vs 13.2kg) and offer two duration options — 90 min at<br />
50% power (3,922 lm) or 180 min at 25% power (1,961 lm) — confirm which the site&#8217;s emergency<br />
lighting design requires. Standard units are rated -40°C to +60°C; emergency variants -20°C to +50°C.</p>
<h3>Evidence</h3>
<p>Source: Raytec &#8220;SPARTAN Zone 1/21 SPX Mid Power Floodlight&#8221; datasheet 1250-D-00007 rev3.</p>
<h3>Next Steps</h3>
<p>See the <a href="/products/fixed-lighting/floodlight/spartan-zone-1-floodlight-standard-and-emer gency">FL24/FL48</a> and <a href="/products/fixed-lighting/floodlight/spartan-zone-1-high-power-floodlight-hpfl">HPFL</a> pages.</p>
<p><a href="/contact">Request a quote</a> with your existing discharge-lamp wattage to confirm sizing.</p>
